UART Serial Jpeg Camera Module Rs232

Name: UART Serial Jpeg Camera Module Rs232
Brand: Neutral / Customization
Price: 1 USD

UART Serial Jpeg Camera Module Rs232 Manufactures

Brand Name : Neutral / Customization

Model Number : CA025M-RS232_5V

Certification : CE / FCC / RoHS

Place of Origin : Shenzhen , China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 60000pcs/month

Delivery Time : 6~36 working days

Packaging Details : Neutral / Customization Giftbox / 16pcs per carton

Model Name : CA025M-RS232_5V

Interface : RS232 Out

Working Power : DC : 5V

sensor : 0.3MP OV7725

Image Compression : JPEG Out

Resolution : VGA(640*480) / QVGA(320*240) / QQVGA(160*120)

Contact Now

RS232 JPEG Serial Camera Module UART Interface Camera Module For GPS remote monitoring

1: This 0.3MP RS232 serial interface camera module with1/4" CMOS Image Sensor output HD JPEG .
2: The 0.3MP RS232 serial interface camera module with White Balance and OV528 Communication protocol.
3: The RS232 serial interface camera module with 0.3 Megapixel and RS232 output and Modules of different sizes.

Product Specification:

Model	Model Name	CA025M-RS232-5V
Features	Interface	RS232
	Working Power	DC 5V
	Working Current	About 70mA (Standby: 50mA)
	Image sensor	OV7725 1/4" CMOS Image Sensor
	Pixels	0.3 Megapixel
	Image Compression	JPEG
	Baud Rate	9600 to 115200bps
	Lens	F:2.8mmIR:850nmFOV:100°
	Image Resolution	VGA(640480) / QVGA(320240) / QQVGA(160*120)
Advantage	White Balance	Automatic
	Exposure	Automatic
	Auto Gain Control	Automatic
	Working Temperature	-10 to 70 degree Celsius
	Warranty	Limited One-Year Warranty and Lifetime Product Support
Software	JPEG Serial Port Camera Test Software	Yes
	User Manual OV528 Protocol	Yes
	Communication protocol	OV528
Package details	Size	38mm38mm / 32mm32mm
	Gross Weight	0.01KG
	Package Included	1 x RS232 JPEG Camera Module

Product Advantages:

1: This OV7725 serial camera is used to Outdoor remote photography.
2: The RS232 JPEG Serial Camera Module UART Interface Camera Module For GPS remote monitoring.
3: This serial camera module with Limited One-Year Warranty and Lifetime Product Support.

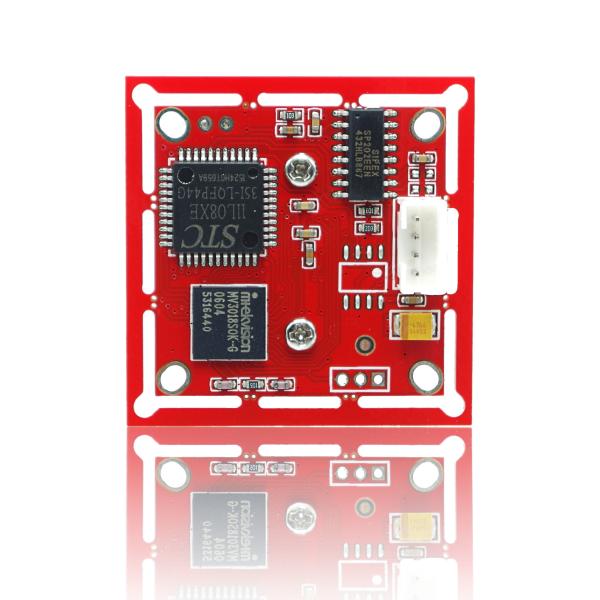

Product picture:
UART Serial Jpeg Camera Module Rs232
